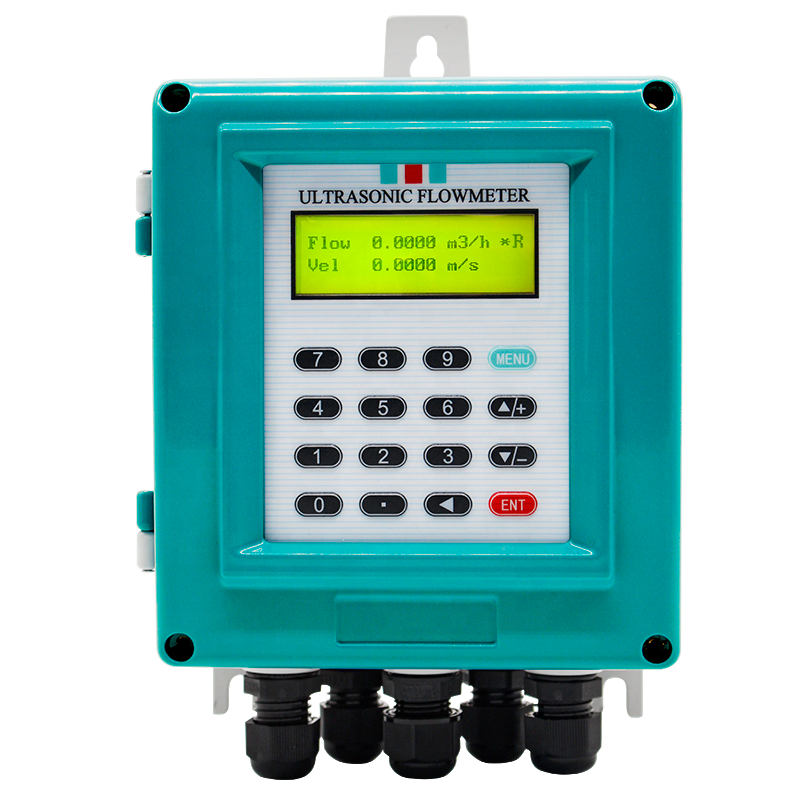

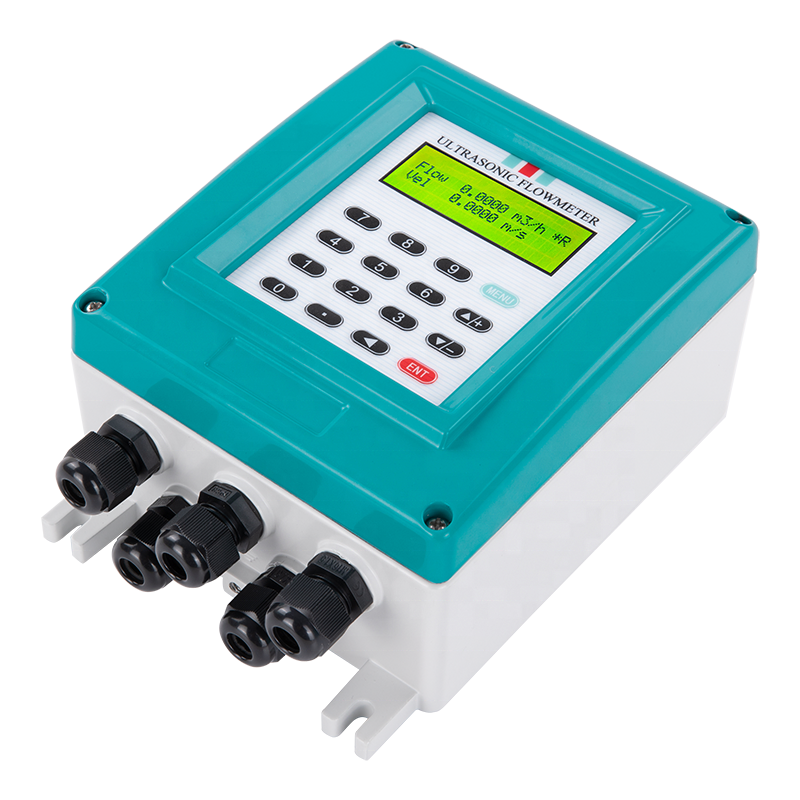

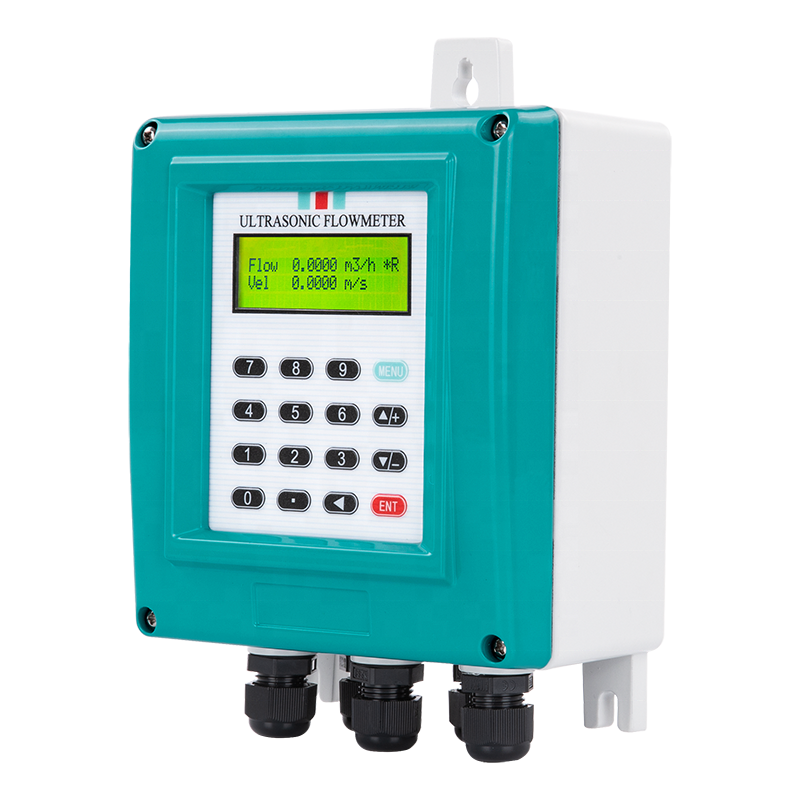

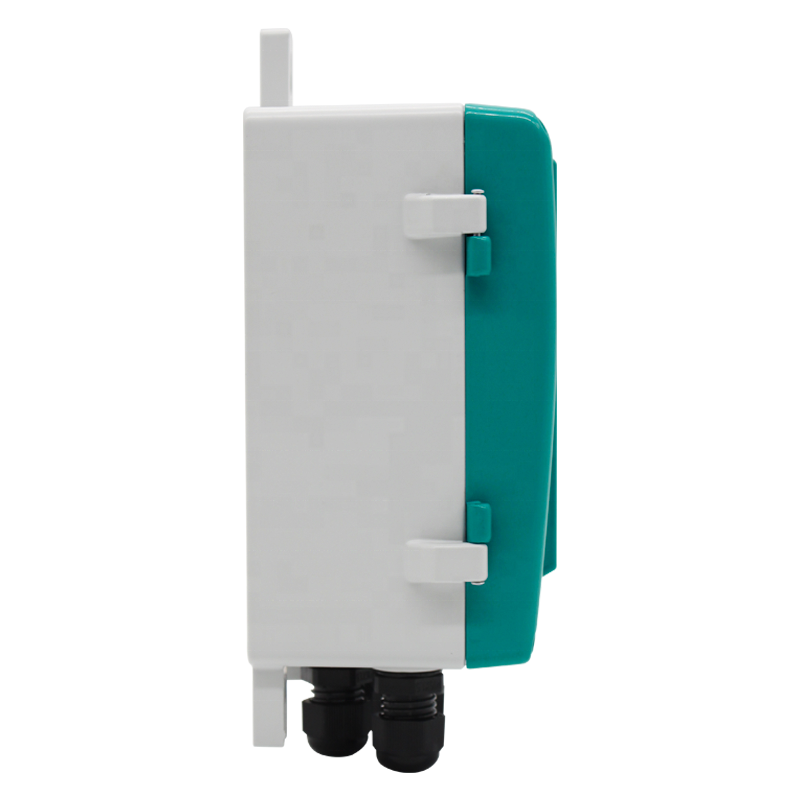

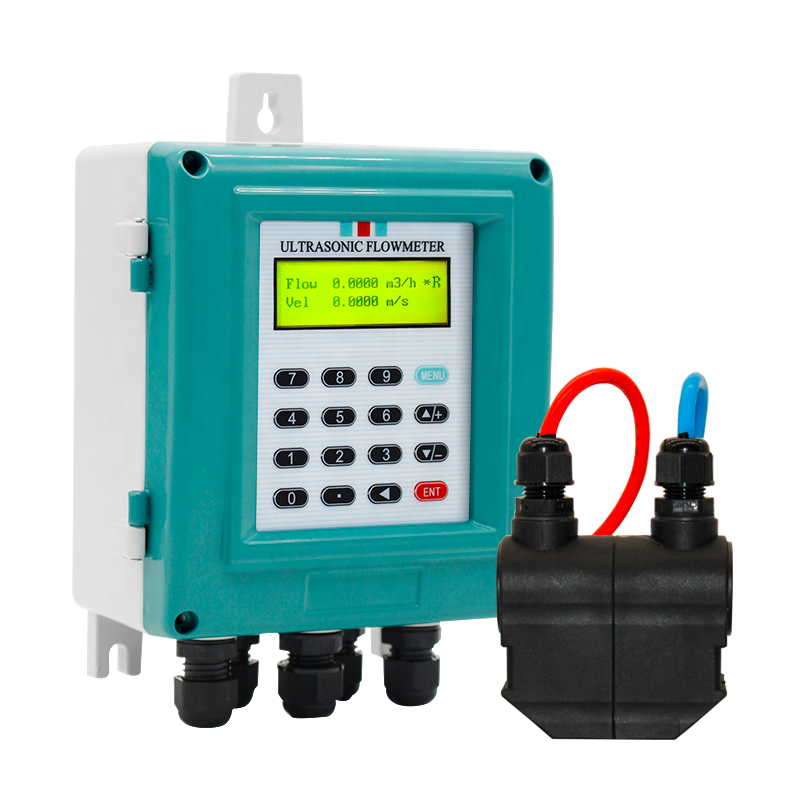

Our TDS-100H Variable Area Heat Meter Calorimeter is designed for precise thermal energy measurement in water and oil systems. With an IP67 protection class and robust construction, this flow meter delivers reliable performance in demanding industrial environments. Ideal for HVAC, district heating, and process control applications, it combines accuracy, durability, and data logging capabilities to optimize energy management.

Key Benefits

• High accuracy of ±1% ensures precise billing and energy monitoring.
• IP67 rating allows installation in wet or dusty conditions without compromise.
• Built-in data logger records flow and temperature data for analysis.
• RS232 communication enables remote monitoring and integration with control systems.
• Low-power 3.6V lithium battery supports long-term operation without external power.

Advanced Measurement Technology

Utilizing transit-time measurement principles, the TDS-100H calculates flow velocity and heat transfer with exceptional precision. The LCD digital display provides real-time readings, while pulse output allows connection to external controllers. This makes it suitable for both stand-alone and networked systems.

Durable & Eco-Friendly Design

Constructed with corrosion-resistant materials, the sensor withstands temperatures from -25°C to +160°C. The long-life battery reduces waste, and the device requires minimal maintenance, lowering total cost of ownership. By enabling accurate energy accounting, it helps reduce carbon footprint through optimized heating/cooling efficiency.

Easy Installation & Integration

The compact DN65 size fits standard piping, and the IP67 housing protects electronics from moisture. RS232 interface simplifies data export to SCADA or building management systems. The built-in data logger stores months of historical data, facilitating energy audits and compliance reporting.

Versatile Applications

• Heating and cooling systems in commercial buildings
• District energy metering and sub-metering
• Industrial process heat transfer monitoring
• Oil flow measurement in refineries and plants

Upgrade your energy monitoring with the TDS-100H – a reliable, accurate, and eco-friendly solution for thermal energy measurement.
