NEC Requirements for Automatic Transfer Switches

Understanding NEC Requirements for Automatic Transfer Switches

Automatic transfer switches (ATS) are the unsung heroes of emergency power systems. When utility power fails, an ATS instantly transfers the electrical load to a standby generator, keeping critical operations running. But installing an ATS isn't as simple as wiring it in—the National Electrical Code (NEC) imposes strict requirements to ensure safety, reliability, and code compliance. Whether you're an electrical contractor, facility manager, or engineer, understanding these NEC rules is essential to avoid costly rework and dangerous installations.

In this comprehensive guide, we'll break down the key NEC articles and sections that apply to automatic transfer switches, including installation, wiring, grounding, overcurrent protection, and testing. We'll also share practical tips to help you navigate inspections with confidence.

Key NEC Articles That Apply to Automatic Transfer Switches

The NEC addresses ATS installations primarily through several articles:

• Article 700 – Emergency Systems: Covers systems legally required to provide power for life safety, such as exit signs, fire alarms, and emergency lighting.
• Article 701 – Legally Required Standby Systems: Applies to systems required by code for health or safety, like heating in hospitals or sump pumps.
• Article 702 – Optional Standby Systems: Covers standby power for non-critical loads, such as data centers or residential backup.
• Article 705 – Interconnected Electric Power Production Sources: Relevant when the ATS interfaces with solar, wind, or other distributed generation.
• Article 230 – Services: Governs service-entrance equipment and disconnects that may include an ATS.
• Article 250 – Grounding and Bonding: Critical for safe ATS operation.

Each article has specific requirements for transfer equipment, wiring methods, and performance criteria. The applicable article depends on the nature of the load and whether the system is legally mandated.

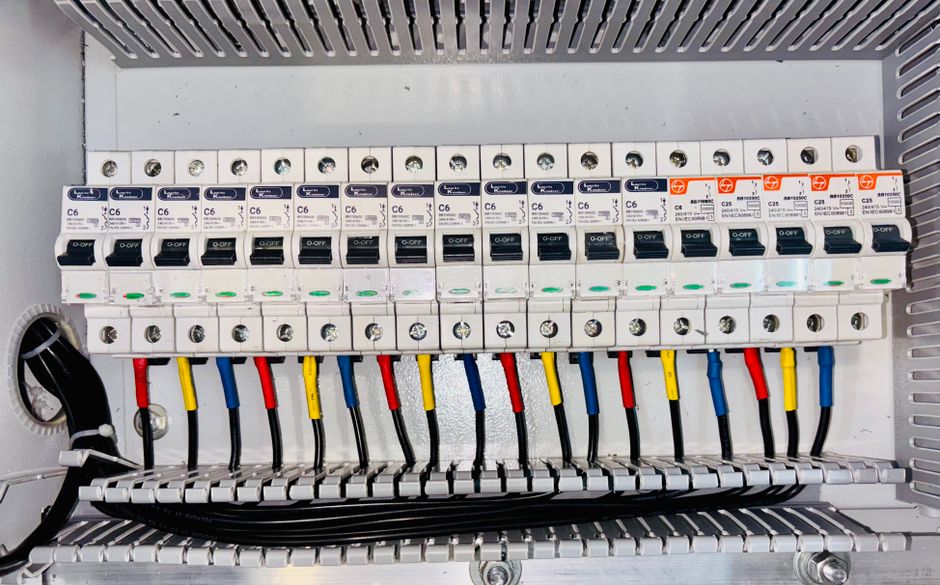

Installation Requirements: Location, Mounting, and Accessibility

NEC Article 700.12(B) and 701.12(B) require that transfer switches be installed in a readily accessible location. This means they must be reachable for maintenance and testing without requiring a ladder or removing obstacles. The switch should be mounted securely, typically on a wall or floor-mounted enclosure, following the manufacturer's instructions and Article 110.3(B).

For emergency systems, the ATS must be located ahead of any branch-circuit overcurrent devices, unless specifically permitted otherwise. This ensures that a fault in the branch circuit doesn't disable the transfer switch. Additionally, the switch must be marked "Suitable for Use as Service Equipment" if it serves as the service disconnect.

Practical Tip: Always check the ATS listing and labeling. The NEC requires equipment to be installed per its listing (110.3(A)). Using a non-listed ATS or one not rated for the available fault current can lead to code violations and safety hazards.

Wiring and Overcurrent Protection

Wiring an ATS involves both normal and emergency power sources, plus the load. The NEC requires that conductors be sized per Article 310 and protected by overcurrent devices per Article 240. Key considerations include:

• Separate raceways: Normal and emergency feeders must be kept separate (700.10(B) for emergency systems) to prevent a single fault from disabling both sources.
• Overcurrent protection: The ATS must have overcurrent protection on both the normal and emergency sides, unless the switch is rated for the available fault current and the installation is part of a listed assembly.
• Neutral and grounding conductors: The ATS must switch the neutral if required by the system design (e.g., separately derived systems). Grounding and bonding must follow Article 250.

For emergency systems, 700.10(D) requires that feeder and branch-circuit wiring be protected from damage by fire. This often means using fire-rated cables or installing in concrete encasement.

Grounding and Bonding Requirements

Proper grounding is non-negotiable. The ATS enclosure must be bonded to the equipment grounding conductor (EGC) per Article 250. The neutral conductor may or may not be bonded to the enclosure depending on whether the ATS is service equipment or a separately derived system.

In a 3-pole ATS, the neutral is typically solid (not switched), and the grounding electrode conductor connects to the neutral bus only at the service. In a 4-pole ATS, the neutral is switched, which is required for separately derived systems to prevent parallel neutral paths. Always verify the system bonding jumper and equipment bonding jumper locations.

Practical Tip: Use a ground-fault protection device if required by 230.95 for service disconnects. For emergency systems, ground-fault indication is often required (700.7).

Testing and Maintenance Requirements

NEC Article 700.3 requires that emergency systems be tested and maintained per NFPA 110, Standard for Emergency and Standby Power Systems. For ATS specifically, this includes:

• Monthly transfer tests under load, if the generator is exercised.
• Annual load-bank testing for emergency systems.
• Documentation of all tests and maintenance.

Article 701.3 and 702.3 have similar but less stringent requirements. Regular testing ensures the ATS will operate when needed and helps identify issues like contact pitting or control failures.

Practical Tip: Create a maintenance log that includes the date, time, duration, and any issues observed during transfer tests. This documentation is often requested by AHJs during inspections.

Special Considerations for Different System Types

Emergency Systems (Article 700)

These systems require the highest level of reliability. The ATS must transfer within 10 seconds of power loss (700.12). Wiring must be protected from fire, and the switch must be listed for emergency use. Remote annunciation of switch position is often required.

Legally Required Standby Systems (Article 701)

Transfer time is typically 60 seconds. The ATS must be capable of carrying the full load and must be tested periodically. Selective coordination with overcurrent devices is required to ensure that a fault on one circuit doesn't trip the main.

Optional Standby Systems (Article 702)

These systems are not legally required, so requirements are less strict. However, the ATS must still be listed and installed per its instructions. Load management is often used to avoid oversizing the generator.

Common Code Violations to Avoid

Inspectors frequently cite the following issues with ATS installations:

• Missing or improper grounding and bonding.
• Inadequate working space around the ATS (Article 110.26).
• Failure to separate normal and emergency circuits.
• Using an ATS not rated for the available fault current.
• Lack of proper labeling and identification.
• Incorrect neutral switching for separately derived systems.

To avoid these, always review the applicable NEC articles, consult the manufacturer's installation manual, and coordinate with the AHJ early in the project.

Frequently Asked Questions

Does an ATS need to be service-rated?

Only if it serves as the service disconnect. Otherwise, a standard ATS with appropriate overcurrent protection is acceptable.

Can I use a 3-pole ATS on a 4-wire system?

Yes, if the neutral is not required to be switched. However, for separately derived systems, a 4-pole ATS is necessary to avoid parallel neutral paths.

What is the maximum transfer time for emergency systems?

NEC 700.12 requires transfer within 10 seconds for emergency systems, unless a different time is specified by the authority having jurisdiction.

Do I need to ground the generator and ATS separately?

No, they must be bonded together per Article 250. The grounding electrode system should be common.

Conclusion

Navigating NEC requirements for automatic transfer switches can be complex, but it's critical for safety and code compliance. By understanding the key articles, focusing on proper installation, grounding, and testing, and avoiding common pitfalls, you can ensure a reliable emergency power system that passes inspection. Always consult the latest edition of the NEC adopted in your area and work closely with local authorities to confirm specific interpretations. When in doubt, rely on listed equipment and manufacturer instructions—they are your best allies in achieving a compliant and dependable ATS installation.
