Introduction to Cryogenic Liquid Flow Measurement
Cryogenic liquids—such as liquid nitrogen (LN₂), liquid oxygen (LO₂), liquid argon (LAr), and liquefied natural gas (LNG)—are stored and transported at extremely low temperatures (below -150°C). Accurate flow measurement in these environments is critical for process control, safety, and billing. Standard flowmeters fail under cryogenic conditions due to material brittleness, thermal contraction, and phase changes. This guide covers everything you need to know about specialized flowmeters for cryogenic liquids.

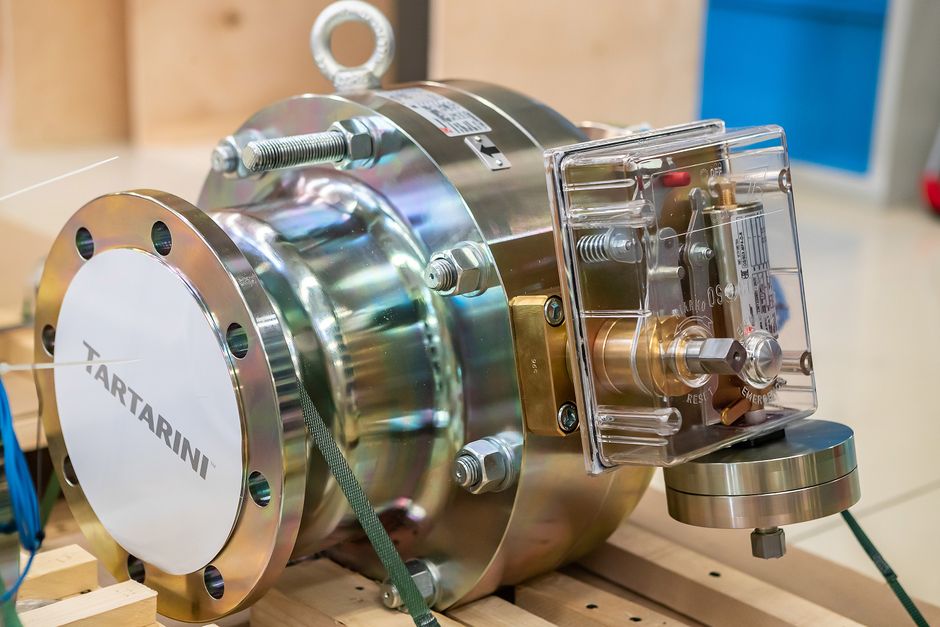

Why Standard Flowmeters Fail in Cryogenic Service
Conventional flowmeters are not designed for cryogenic temperatures. Common failure modes include:
- Material embrittlement: Many metals and elastomers become brittle and crack at low temperatures.
- Thermal contraction: Differential contraction between components causes leaks or mechanical binding.
- Ice formation: Moisture in the atmosphere freezes on cold surfaces, affecting moving parts.
- Phase change: Cryogenic liquids boil rapidly when warmed, causing two-phase flow that disrupts measurement accuracy.
Key Technologies for Cryogenic Flowmeters
Coriolis Flowmeters
Coriolis meters measure mass flow directly and are highly accurate for cryogenic liquids. They have no moving parts and can handle two-phase flow to some extent. However, they require special materials (e.g., 316L stainless steel or Inconel) and careful thermal design to prevent stress cracking.
Cryogenic Turbine Flowmeters
Turbine meters use a rotor that spins as fluid passes. For cryogenic service, they are built with low-friction bearings (e.g., ceramic or tungsten carbide) and materials that maintain clearance at low temperatures. They are cost-effective for clean, single-phase liquids.
Ultrasonic Flowmeters
Clamp-on or inline ultrasonic meters measure flow by sending sound waves through the fluid. They are non-intrusive and have no moving parts, but require careful installation to avoid signal attenuation due to cryogenic temperatures. Transit-time meters work best for clean liquids; Doppler meters can handle some particles.
Vortex Flowmeters
Vortex meters measure flow by detecting vortices shed by a bluff body. They are robust and have no moving parts. For cryogenic use, the bluff body and sensor must be made of compatible materials (e.g., stainless steel) and designed to minimize heat ingress.
Critical Design Considerations
Material Selection
All wetted parts must be compatible with cryogenic temperatures. Common materials include:
- 316L stainless steel (good down to -196°C)
- Inconel 718 (excellent strength at low temperatures)
- PTFE or PEEK for seals (maintain flexibility)
- Ceramic bearings (low friction, no galling)
Thermal Insulation and Heat Management
Flowmeters must be insulated to prevent heat ingress that could cause boiling. Vacuum-jacketed enclosures or foam insulation are common. Additionally, the meter body should be designed with thermal breaks to isolate sensitive electronics.
Installation Best Practices
Proper installation is vital for accuracy and safety:
- Install the meter in a vertical pipe run with flow upward to ensure full liquid contact.
- Provide sufficient straight pipe upstream (10-20 diameters) and downstream (5 diameters).
- Use appropriate gaskets and flanges rated for cryogenic service.
- Allow for thermal contraction in piping supports.
Calibration and Accuracy
Cryogenic flowmeters should be calibrated under actual operating conditions (temperature, pressure, fluid properties) whenever possible. Calibration can be done using gravimetric methods (weighing the liquid) or master meters. Accuracy expectations vary by technology:
| Technology | Typical Accuracy | Best For |
|---|---|---|
| Coriolis | ±0.1% of rate | Mass flow, custody transfer |
| Turbine | ±0.5% of rate | Clean liquids, high flow rates |
| Ultrasonic | ±1.0% of rate | Non-intrusive, large pipes |
| Vortex | ±1.0% of rate | Steam, gases, liquids |
Common Applications Across Industries
- LNG production and transport: Custody transfer metering at liquefaction plants and receiving terminals.
- Industrial gas supply: Monitoring liquid nitrogen, oxygen, and argon in pipelines and tanker loading.
- Medical gas systems: Accurate dosing of liquid oxygen for hospital supply.
- Semiconductor manufacturing: Precise flow control of cryogenic gases for wafer processing.
Selecting the Right Flowmeter for Your Needs
Consider these factors when choosing a cryogenic flowmeter:
- Fluid type: Is it a single-phase liquid or likely to have gas bubbles?
- Flow range: Turndown ratio required (typically 10:1 for turbine, 20:1 for Coriolis).
- Pipe size: Larger pipes may favor ultrasonic or insertion meters.
- Accuracy requirement: Custody transfer demands higher accuracy (Coriolis).
- Maintenance: No-moving-parts meters (Coriolis, ultrasonic) reduce downtime.
- Budget: Turbine meters are cost-effective; Coriolis meters are premium.
Maintenance and Troubleshooting Tips
- Regularly inspect for ice buildup on the meter body and electronics.
- Check for leaks at flanges and seals; use helium leak detection.
- Verify zero drift in Coriolis meters; re-zero after temperature changes.
- Replace bearings in turbine meters per manufacturer schedule.
- Keep spare parts (gaskets, O-rings) designed for cryogenic service.
Conclusion
Selecting the right flowmeter for cryogenic liquids requires understanding the unique challenges of low-temperature environments. Coriolis meters offer the highest accuracy for mass flow, while turbine and vortex meters provide cost-effective solutions for clean fluids. Ultrasonic meters excel in non-intrusive applications. Always prioritize material compatibility, thermal management, and proper installation. By partnering with an experienced manufacturer, you can ensure reliable measurement and safe operation in your cryogenic processes.
