Automatic Transfer Switch Maintenance Checklist

Why Automatic Transfer Switch Maintenance Matters

An automatic transfer switch (ATS) is the unsung hero of any backup power system. When the utility grid fails, the ATS senses the outage, starts the generator, and transfers the electrical load within seconds. Without regular maintenance, however, an ATS can fail at the worst possible moment—leaving critical operations, data centers, hospitals, or homes without power. This checklist covers everything you need to inspect, test, and service to keep your ATS reliable year after year.

According to industry studies, more than 70% of generator failures are actually transfer switch failures. The mechanical and electrical components inside an ATS endure constant wear, dust, heat, and humidity. A structured maintenance program is not optional; it is the difference between a seamless transition and a costly outage.

How Often Should You Perform ATS Maintenance?

Manufacturers typically recommend a full inspection and testing schedule based on the environment and criticality of the load. Use the following as a baseline:

Always consult your ATS manufacturer's manual, as specific models may have unique requirements. NFPA 110 and NEC 700 also mandate periodic testing for emergency and legally required standby systems.

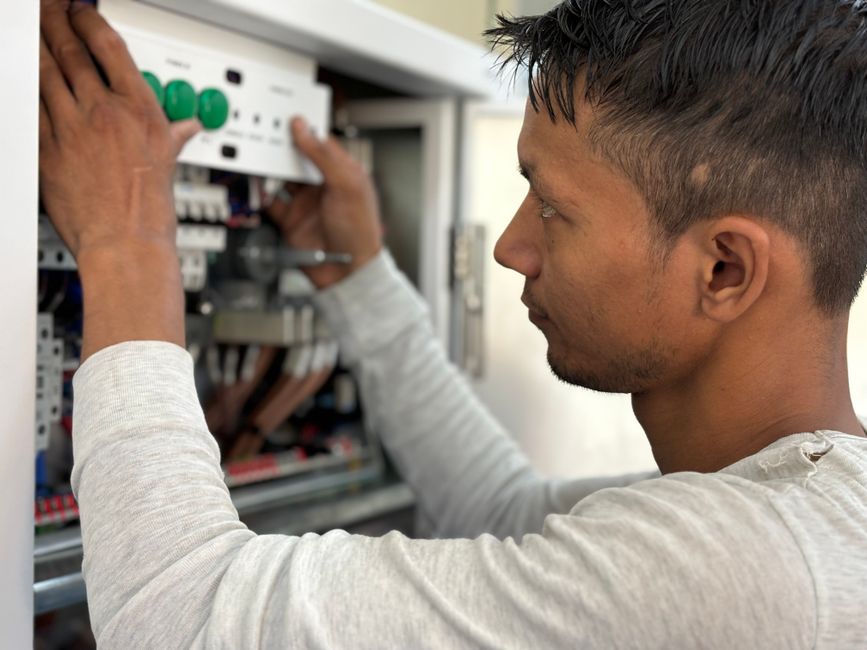

Pre-Maintenance Safety Preparations

Before you touch any component, safety must come first. An ATS connects two live power sources—utility and generator—so the risk of arc flash and electrocution is real.

• Notify all affected personnel that maintenance is in progress.
• Don personal protective equipment (PPE): arc-rated clothing, insulated gloves, safety glasses, and hearing protection.
• De-energize both the normal and emergency sources where possible. Lock out and tag out (LOTO) all disconnects.
• Verify zero voltage using a properly rated meter on all terminals.
• Have the manufacturer's wiring diagram and service manual on hand.

If your ATS is in a critical facility, coordinate with facility management to ensure backup coverage during the maintenance window.

Visual Inspection Checklist

A thorough visual inspection often reveals problems before they cause a failure. Work through the following items methodically:

Enclosure and Environment

• Check for water intrusion, rust, or corrosion inside and outside the enclosure.
• Verify all conduit fittings, gaskets, and door seals are intact.
• Confirm heaters, fans, and ventilation ports are functioning.
• Look for signs of rodent or insect infestation.
• Ensure the enclosure is clean and free of dust, debris, or loose metal particles.

Wiring and Connections

• Inspect all power and control wiring for cracked insulation, discoloration, or overheating.
• Check terminal lugs for tightness using a calibrated torque wrench. Re-torque to manufacturer specifications.
• Look for signs of arcing, pitting, or carbon tracking on contacts and busbars.
• Verify that all control fuses are the correct type and rating.

Mechanical Components

• Inspect the transfer mechanism for smooth operation and alignment.
• Check springs, linkages, and pivot points for wear or binding.
• Lubricate moving parts with the manufacturer-approved lubricant only.
• Examine the operator handle and manual transfer mechanism for damage.

Electrical Testing Procedures

Visual checks alone are insufficient. You must verify the ATS actually performs under load.

Voltage and Insulation Testing

• Measure normal, emergency, and load-side voltages to confirm correct levels.
• Perform insulation resistance (megger) tests on power conductors to detect degraded insulation.
• Check control circuit voltage and battery backup (if applicable).

Functional Transfer Test

1. Simulate a utility outage by opening the normal source breaker.
2. Observe the ATS signal the generator to start (verify start delay settings).
3. Confirm the transfer to emergency source occurs within the specified time.
4. Monitor the load for voltage stability and phase balance.
5. Restore the normal source and verify retransfer and generator cool-down timing.

Record all timings and compare them to the original commissioning data. Drift in transfer time often indicates a mechanical or control problem.

Control Panel and Sensor Checks

Modern ATS units rely on sophisticated controllers. These components are sensitive to voltage spikes and environmental conditions.

• Inspect the controller display for error codes or warnings.
• Test all indicator lamps and alarms.
• Verify the settings for voltage, frequency, and time delays match your system design.
• Check the condition of current transformers (CTs) and potential transformers (PTs).
• Confirm that remote annunciation and building management system (BMS) communications are working.
• Replace controller backup batteries every 2–3 years or as recommended.

Load Bank Testing and Generator Coordination

The ATS does not operate in isolation—it must work seamlessly with the generator. During maintenance, coordinate testing with your generator service provider.

• Run the generator under a load bank to verify it can carry the full transfer load.
• Test the ATS under actual load, not just no-load conditions.
• Verify the generator start signal wiring and terminal connections.
• Check that the generator cool-down timer allows proper engine cooling before shutdown.

Annual load bank testing is especially important for life-safety systems and is often required by code.

Common ATS Problems and Warning Signs

Knowing what to look for can help you catch issues early:

Any of these symptoms warrant immediate investigation. Do not wait for the next scheduled maintenance.

Documentation and Record Keeping

Maintenance is only as good as the records you keep. Accurate documentation proves compliance, supports warranty claims, and helps predict failures.

• Log the date, technician name, and tasks performed.
• Record all meter readings, torque values, and test results.
• Note any parts replaced and their serial numbers.
• Document any abnormalities and corrective actions taken.
• Retain records for at least the period required by local codes (often 3–5 years).

Digital maintenance management systems can streamline this process and send automatic reminders when service is due.

When to Call a Professional

While some visual checks can be performed in-house, tasks involving live electrical work, insulation testing, or controller programming should be handled by licensed electricians or certified technicians. If your ATS shows signs of arcing, overheating, or repeated transfer failures, contact the manufacturer or a qualified service provider immediately. Attempting repairs without proper training can void warranties and create serious safety hazards.

Final Thoughts

An automatic transfer switch is a life-safety device. Its reliability depends entirely on a disciplined maintenance routine. By following this checklist—scheduling regular inspections, performing functional tests, documenting results, and addressing issues promptly—you ensure that when the power goes out, your ATS will do its job. Preventive maintenance is far less expensive than an unplanned outage, and in critical facilities, it can literally save lives.
