How to Install an Automatic Transfer Switch Safely

How to Install an Automatic Transfer Switch Safely

An automatic transfer switch (ATS) is the unsung hero of any backup power system. When the utility grid fails, the ATS senses the outage, starts your generator, and transfers the electrical load from the utility to the generator—all within seconds. When power returns, it reverses the process and shuts the generator down. Installing an ATS safely is not a weekend DIY project for most homeowners; it involves high-voltage wiring, code compliance, and life-safety considerations. This guide walks you through the entire process, from planning and permits to final testing, with a strong emphasis on safety at every step.

What Is an Automatic Transfer Switch and Why It Matters

What Is an Automatic Transfer Switch and Why It Matters

An automatic transfer switch is a device that connects your home or business to two power sources: the utility grid and a standby generator. Its primary job is to prevent backfeeding—the dangerous condition where generator power flows back into the utility lines and endangers line workers. It also ensures a seamless transition so your lights, refrigeration, and critical systems stay powered.

There are three main types of ATS:

  • Open transition (break-before-make): Disconnects from one source before connecting to the other. There is a brief power interruption, typically a few seconds. This is the most common and affordable type.
  • Closed transition (make-before-break): Briefly parallels both sources to avoid any interruption. Used in data centers and hospitals where even a millisecond of downtime is unacceptable.
  • Service entrance rated: Includes a built-in main breaker and can be installed as the main disconnect, often simplifying the installation.

For residential standby generators, an open-transition, service-entrance-rated ATS is usually the best choice. It combines the transfer switch and main panel disconnect in one enclosure, reducing wiring complexity and cost.

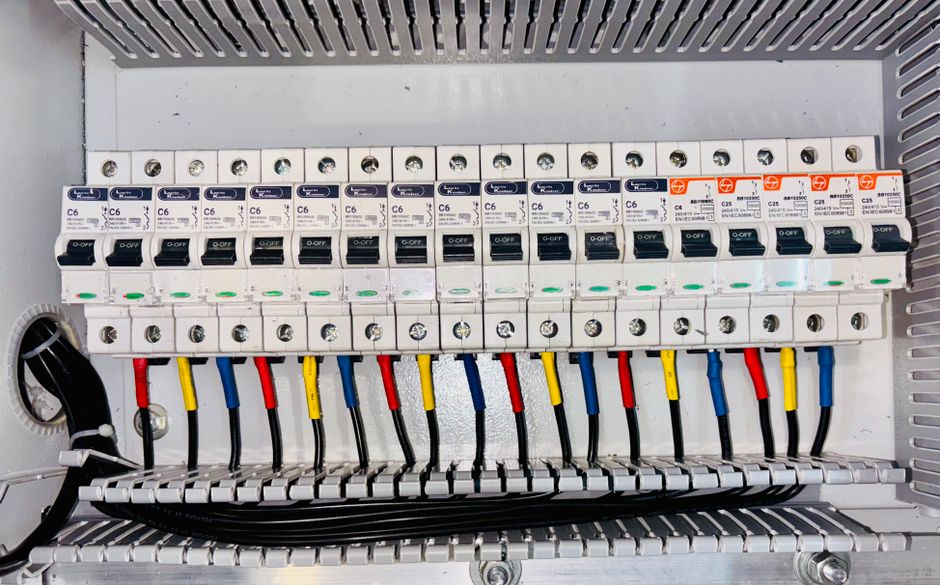

Safety First: Essential Precautions Before You Begin

Safety First: Essential Precautions Before You Begin

Electrical work can be lethal. Before touching any wiring, read and follow these safety rules:

  • De-energize everything: Turn off the main breaker and verify with a non-contact voltage tester that all conductors are dead. Lock out and tag out the panel if possible.
  • Wear personal protective equipment (PPE): Insulated gloves, safety glasses, and arc-rated clothing are mandatory when working near live equipment.
  • Never work alone: Have someone nearby who can call for help or shut off power in an emergency.
  • Check local codes: The National Electrical Code (NEC) Article 702 covers optional standby systems. Your local jurisdiction may have additional requirements.
  • Pull a permit: Most municipalities require an electrical permit for ATS installation, and the work must be inspected by a licensed electrician or inspector.

If you are not fully confident in your ability to work with 240-volt circuits, hire a licensed electrician. The cost of professional installation is far less than the cost of a serious injury or a house fire.

Planning Your Installation: Sizing and Location

Determine Your Load Requirements

The ATS must be rated for the total amperage of the circuits it will manage. Add up the running watts and starting watts of all appliances you want to power during an outage. For whole-house coverage, a 200-amp ATS is typical. For essential-circuit systems, a 100-amp or 50-amp switch may suffice.

Load Type Typical ATS Size Notes
Whole house 200 A Matches standard 200 A service panel
Essential circuits 100 A Furnace, fridge, well pump, lights
Small backup 50 A For small generators or sub-panels

Choose the Right Location

Install the ATS indoors or outdoors according to its NEMA rating. It should be close to both the utility meter and the generator to minimize wire runs. Ensure the location is accessible for maintenance and not subject to flooding. Keep at least 3 feet of clearance in front of the enclosure for code compliance.

Step-by-Step Installation Guide

Step 1: Gather Tools and Materials

You will need: the ATS unit, a torque wrench, wire strippers, a drill, conduit and fittings, appropriate gauge copper wire (often #2/0 or #1/0 for 200 A), a voltage tester, and a generator connection kit. Always use copper conductors rated for the amperage and temperature rating of the terminals.

Step 2: Mount the ATS

Secure the enclosure to a sturdy wall using lag bolts. Ensure it is level and that the mounting holes align with wall studs. For outdoor units, seal all conduit entries with appropriate fittings to maintain the NEMA rating.

Step 3: Wire the Utility Side

Run conductors from the utility meter or main panel to the ATS utility terminals. Connect the two hot legs (black and red), the neutral (white), and the ground (green or bare copper). Torque all lugs to the manufacturer's specifications—loose connections cause overheating and fires.

Step 4: Wire the Generator Side

Run a separate conduit from the generator to the ATS. Connect the generator's output conductors to the ATS generator terminals. If the generator is a separately derived system, you may need to switch the neutral as well. Consult the generator manual for specific wiring diagrams.

Step 5: Connect the Load Side

Feed the load conductors from the ATS to your home's distribution panel. In a service-entrance-rated ATS, the load terminals connect directly to the main panel's lugs. In a standalone ATS, you may need to install a sub-panel for the backed-up circuits.

Step 6: Install the Control Wiring

Most ATS units require low-voltage control wires to the generator for start/stop signals and battery charging. Follow the manufacturer's wiring diagram carefully. Use a separate conduit for control wiring to avoid interference.

Step 7: Grounding and Bonding

Proper grounding is critical. Bond the ATS enclosure to the grounding electrode system. Ensure the neutral and ground are bonded only at the service entrance, not in sub-panels. This prevents objectionable current on grounding conductors.

Testing and Commissioning

After all connections are made and inspected, it's time to test. Follow this sequence:

  • Verify all breakers are in the correct position and all covers are installed.
  • Turn on the utility power and check for normal voltage at the load terminals.
  • Simulate a power outage by opening the utility main breaker. The ATS should start the generator and transfer power within the programmed delay.
  • Check voltage and frequency at the load terminals to ensure they are within acceptable ranges.
  • Close the utility breaker. The ATS should transfer back and shut down the generator after a cool-down period.
  • Test the manual override function if equipped.

Record all settings—transfer delay, engine cool-down, exercise timer—in a log for future reference.

Common Mistakes to Avoid

  • Undersized wiring: Using wire that is too small causes voltage drop and overheating. Always match wire gauge to the ATS rating and run length.
  • Improper neutral bonding: Bonding neutral and ground in a sub-panel creates a parallel path for current and is a serious code violation.
  • Forgetting the exercise timer: Generators need to run regularly to stay reliable. Set the ATS to exercise the generator weekly or monthly.
  • Ignoring local amendments: Some areas require additional disconnects or specific labeling. Check with your AHJ (Authority Having Jurisdiction).

Maintenance Tips for Long-Term Safety

Once installed, your ATS requires periodic attention. Inspect terminals for tightness annually, clean the enclosure, and test the transfer operation every six months. Replace the generator battery every two to three years, and keep the area around the ATS clear of debris. If you notice any signs of arcing, burning, or unusual noises, shut down the system and call a professional immediately.

When to Call a Professional

While this guide provides a comprehensive overview, ATS installation involves complex electrical work that should be performed by a licensed electrician in most cases. If you are unsure about any step—especially grounding, load calculations, or control wiring—hire a qualified professional. Your safety and the safety of your family depend on a correct installation.

By following these guidelines, you can ensure your automatic transfer switch operates reliably when you need it most, providing seamless backup power without compromising safety.
