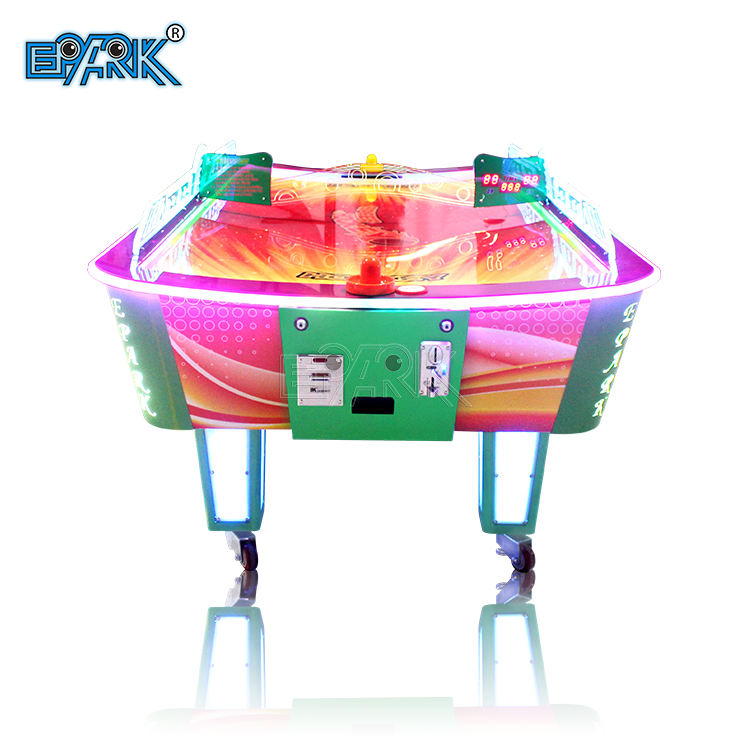

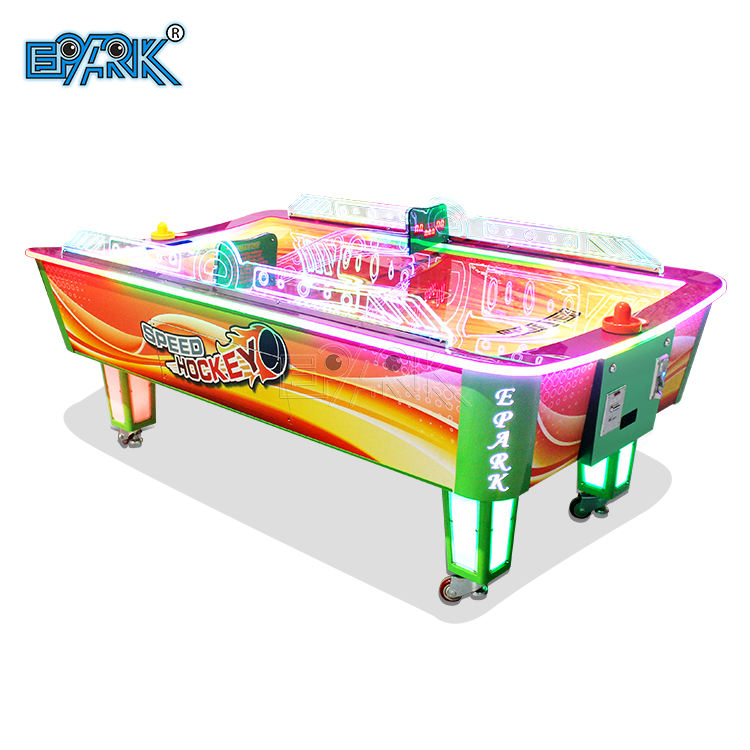

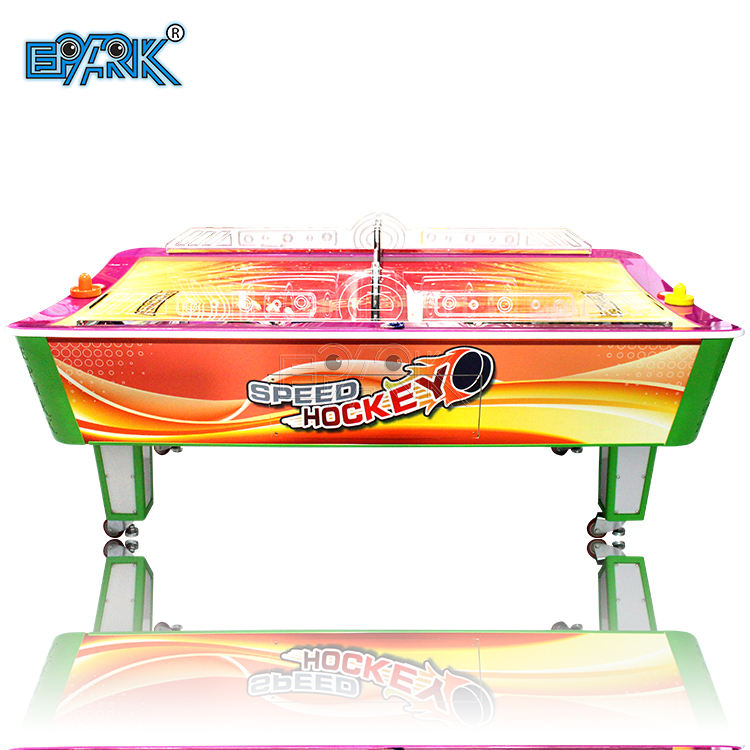

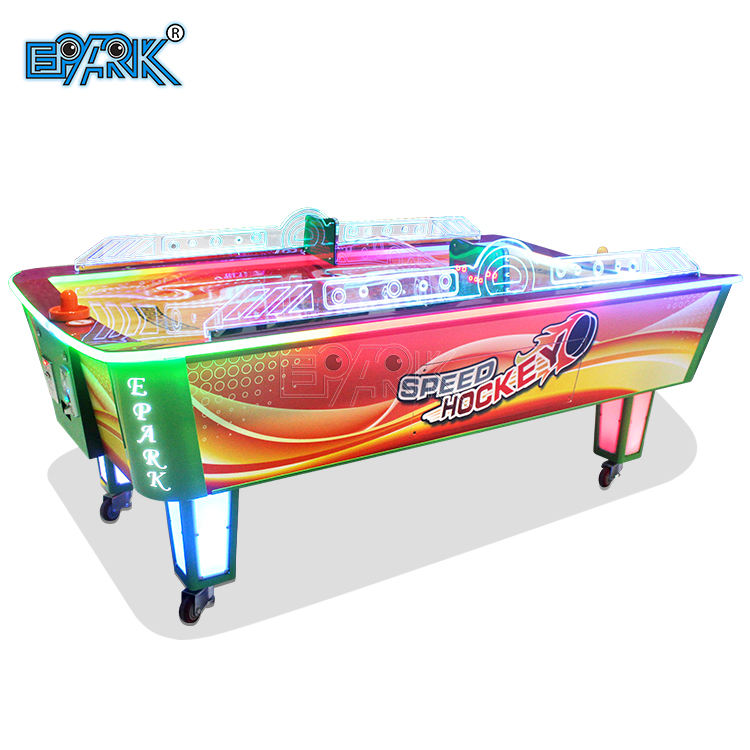

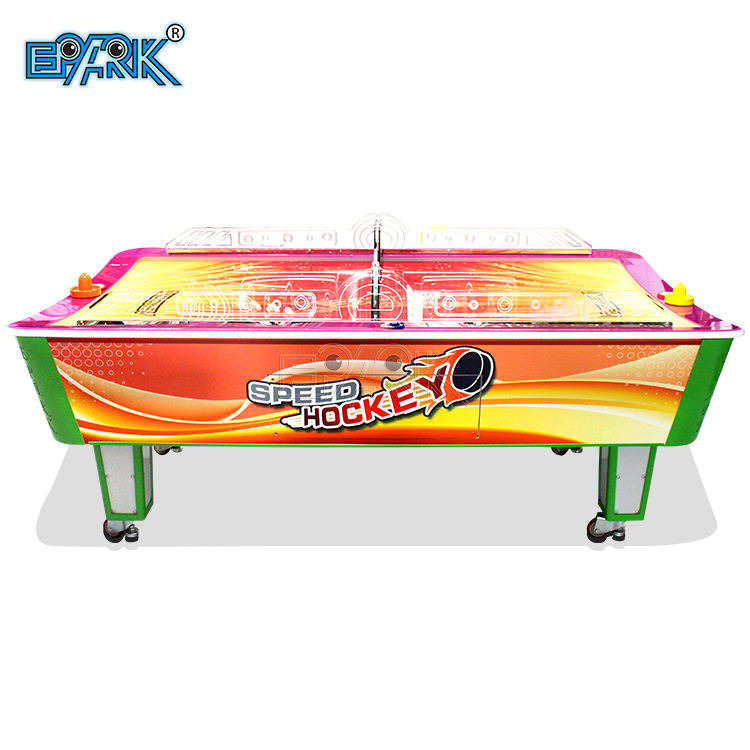

Curved-Rail Coin-Operated Air Hockey Table | Commercial Arcade Game
Bring high-energy entertainment to any venue with our Commercial Curved Air Hockey Table. Designed for continuous commercial use, this coin-operated arcade
| Material | Metal + Acrylic |
|---|---|
| Size | L213 x W124 x H99 cm |
| Voltage | 220V |
| Power | 400W |
| Player Capacity | 2-4 players |
| Weight | 250 kg |
| Warranty | 1 year |
| MOQ | 1 set |
| Packing Size | 2.28 x 1.31 x 1.02 m |
| Table Type | Curved, L size |
Specifications shown are for the standard configuration. Ask for the full datasheet with blower data, playfield thickness and carton dimensions.
The curved playfield
The playfield edge curves into the goal mouth instead of meeting it at a square corner, so play keeps moving and the puck is far less likely to sit dead in a corner. The rail is a continuous moulded piece with no exposed joint along the playing line, and the goal mouth is protected by a metal lip.
Commercial construction
Cabinet frame and legs are steel with a powder-coated finish, the playfield sits on a braced sub-frame to stop sagging, and the blower is mounted on isolation mounts so the machine runs quieter than a rigid-mounted unit. The service panel behind the goal gives access to the blower, power supply and scoring board.
Coin operation and market configuration
Coin or token entry, single or dual mechanism, electronic credit with free-play override, and blower and cord set specified for 110 V 60 Hz or 220-240 V 50 Hz. Curved models mix with 6 ft and 7 ft cabinets in one container, and we prepare carton marks and the loading plan per shipment.
- Trial orders from a single pallet; mixed containers welcome
- Incoterms: EXW, FOB, CIF or DAP to your warehouse
- Export packing: foam-protected corners inside reinforced cartons
- Documents: packing list, carton marks, manual in your chosen language
Get the price, carton plan and lead time for this table
Send the quantity, playfield size, blower voltage and whether you need your own logo or carton. Our sales desk answers within one business day.
- Dimension drawings and carton data on request
- Logo, cabinet colour and private-label packaging
- Sample tables for retail and arcade evaluation
