Introduction: Why Proper Sizing Matters
Choosing the right air compressor for your manufacturing plant is a critical decision that affects energy efficiency, production uptime, and operating costs. An undersized compressor leads to pressure drops and insufficient airflow, while an oversized unit wastes energy and increases maintenance. This guide will walk you through the step-by-step process of sizing an air compressor to match your plant's specific needs.

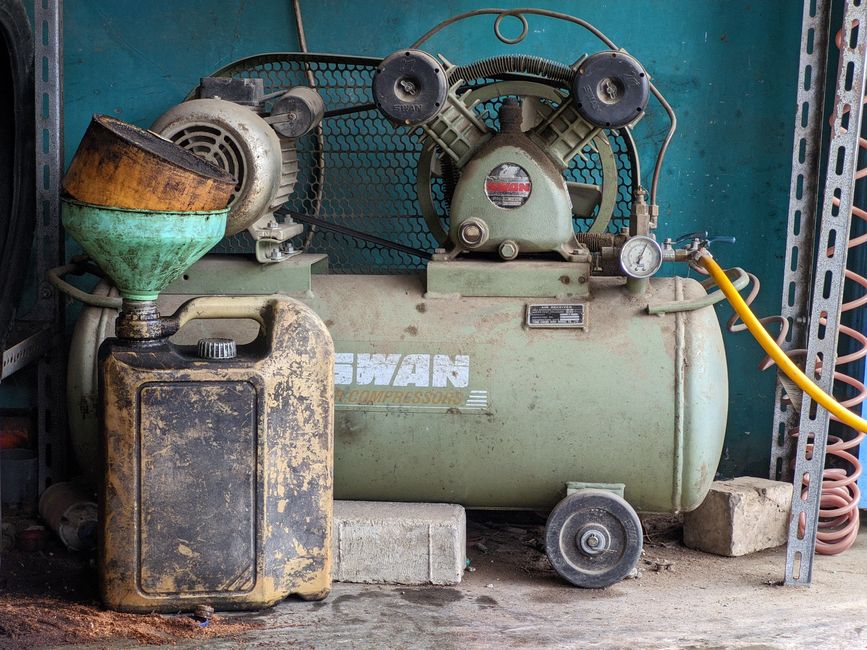

Understand Your Air Demand
Calculate Total Air Consumption
Start by listing all pneumatic tools and equipment in your facility. For each device, note its air consumption in cubic feet per minute (CFM) at a given pressure (typically 90 PSI). Multiply the CFM by the usage factor (percentage of time the tool is actually operating) to get the average demand. Sum these values to find your total average CFM.
Consider Future Expansion
Add a 10-20% buffer for future growth or additional equipment. This prevents premature system upgrades.
Determine Required Pressure
Most manufacturing equipment operates at 90-100 PSI. Check the highest pressure requirement among your tools. Your compressor must deliver at that pressure plus account for pressure drop in pipes and filters. A common rule is to size for 10-15% higher pressure than the highest requirement.
Account for Duty Cycle and Load Profile
Duty cycle indicates how long a compressor can run without overheating. For continuous operation, choose a unit rated for 100% duty cycle. If your demand fluctuates, consider a variable speed drive (VSD) compressor that adjusts output to match demand, saving energy.
Choose the Right Compressor Type
- Reciprocating (Piston): Best for intermittent use, lower cost, but higher maintenance.
- Rotary Screw: Ideal for continuous operation, efficient, and quiet.
- Centrifugal: For very large plants (above 1000 CFM), oil-free air, high efficiency.
Calculate Actual CFM Requirements
Use this formula: Required CFM = (Total average CFM x Duty cycle factor) + Leakage allowance. A typical leakage allowance is 10-20% of total CFM. For example, if your total average CFM is 200 and leakage is 20%, you need 240 CFM.
Consider Ambient Conditions
Altitude and temperature affect compressor performance. At higher altitudes, air is less dense, so compressors deliver less CFM. Compensate by increasing CFM rating by 3% for every 1000 feet above sea level. Similarly, high inlet temperatures reduce efficiency.
Selecting the Right Horsepower (HP)
While CFM is the primary metric, HP gives a rough estimate. A typical rule: 1 HP produces about 4 CFM at 100 PSI. However, efficiency varies by type. Use manufacturer performance curves for precise selection.
Example Sizing Scenario
Imagine a plant with 10 machines each requiring 15 CFM at 90 PSI, running 70% of the time. Total average CFM = 10 x 15 x 0.7 = 105 CFM. Add 15% buffer (15.75 CFM) → 120.75 CFM. Add 20% leakage (24.15 CFM) → 144.9 CFM. Thus, a 150 CFM compressor at 100 PSI would be suitable.
Table: Quick Sizing Reference
| Total Average CFM | Recommended Compressor CFM (with buffer & leakage) | Approx. HP (Rotary Screw) |
|---|---|---|
| 50 | 65-75 | 15-20 |
| 100 | 130-150 | 30-40 |
| 200 | 260-300 | 60-75 |
| 500 | 650-750 | 150-200 |
Don't Forget Accessories
Include dryers, filters, and piping in your system design. Pressure drops across these components can reduce effective pressure at the point of use. Oversize piping to minimize drops.
Conclusion
Proper air compressor sizing ensures reliable production, lower energy bills, and longer equipment life. By following these steps, you can select a compressor that meets your plant's exact needs. For expert assistance, contact our team to perform a detailed audit.
