What Is a Megohmmeter Used For?

A megohmmeter is a specialized test instrument that measures very high electrical resistance, typically in the megohm (millions of ohms) to gigohm range. It is most commonly used to test the insulation quality of cables, motors, transformers, generators, switchgear, and other electrical equipment. By applying a high DC voltage and measuring how much current leaks through the insulation, a megohmmeter reveals whether insulation is healthy, aging, contaminated, or damaged.

Unlike a standard multimeter, which cannot accurately read such high resistance values, a megohmmeter is built to apply test voltages of 250 V, 500 V, 1,000 V, 2,500 V, 5,000 V, or even 10,000 V depending on the model. This makes it an essential tool for electricians, maintenance engineers, and anyone responsible for electrical safety and preventive maintenance.

How Does a Megohmmeter Actually Work?

A megohmmeter works by generating a high DC voltage and applying it across the insulation under test. The instrument then measures the tiny leakage current that flows through or over the insulation. Using Ohm's law, it calculates resistance as voltage divided by current and displays the result in megohms or gigohms.

Because insulation resistance changes over time under an applied voltage, many megohmmeters also show polarization index (PI) and dielectric absorption ratio (DAR) values. These ratios compare resistance readings taken at different time intervals, such as 1 minute versus 10 minutes, and help diagnose moisture, contamination, or deterioration that a single spot reading might miss.

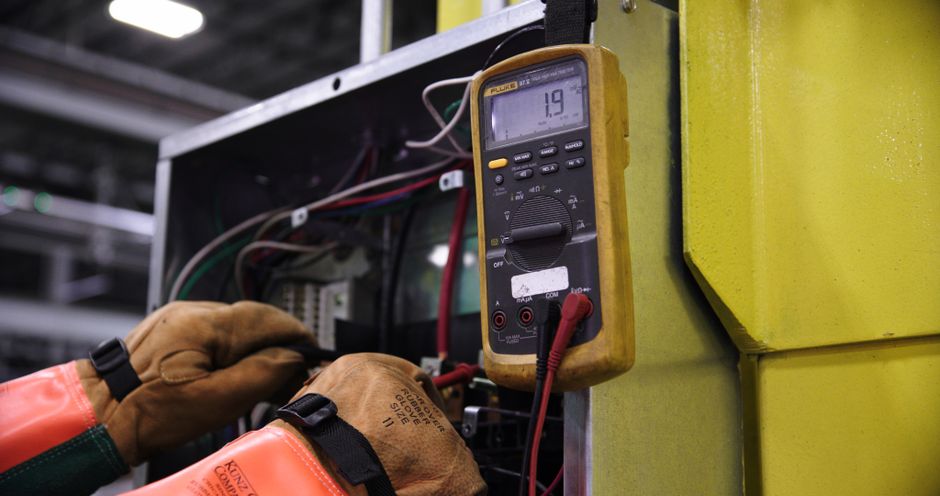

What Equipment Is Typically Tested With a Megohmmeter?

Megohmmeters are used across many industries, including power generation, manufacturing, utilities, HVAC, and building maintenance. Common test subjects include:

• Electric motors and motor windings
• Power and control cables
• Transformers and bushings
• Generators and alternators
• Switchgear, breakers, and busbars
• Wiring harnesses and panel wiring
• Heating elements and appliance insulation

In each case, the goal is to confirm that current stays inside the intended conductor and does not leak to ground or to another conductor through weakened insulation.

Why Is Insulation Resistance Testing So Important?

Insulation is the only thing standing between a live conductor and a dangerous fault. Over time, heat, vibration, moisture, chemicals, dust, and mechanical stress degrade insulation. When that happens, leakage current rises, efficiency drops, and the risk of short circuits, electric shock, or fire increases dramatically.

Regular megohmmeter testing catches these problems early. A trending downward insulation resistance reading can warn maintenance teams to schedule repairs before a failure occurs. This supports predictive and preventive maintenance programs, reduces unplanned downtime, and helps satisfy safety standards and insurance requirements.

What Test Voltages Should You Use?

The correct test voltage depends on the equipment's rated voltage and the manufacturer's recommendations. Common guidelines include:

Using too low a voltage may not reveal defects, while using too high a voltage can damage sensitive equipment. Always follow the equipment manufacturer's guidance and relevant standards such as IEEE 43 or IEC 60034.

How Do You Interpret Megohmmeter Readings?

There is no single universal pass/fail number, but a widely used rule of thumb is that insulation resistance should be at least 1 megohm per 1,000 volts of operating voltage, plus 1 megohm. For example, a 480 V motor should ideally read at least around 1.5 megohms, though most healthy motors read far higher.

More important than any single reading is the trend over time. A value that drops steadily across successive tests signals deterioration. The polarization index is also valuable: a PI above 2.0 generally indicates good, dry insulation, while a PI below 1.0 suggests moisture or contamination. Temperature correction is important because insulation resistance falls as temperature rises.

What Are the Main Types of Megohmmeters?

Megohmmeters come in several forms. Hand-cranked models are rugged and need no batteries, making them useful in remote locations. Battery-powered digital megohmmeters are the most common today and offer auto-ranging, timed tests, PI/DAR calculation, and data logging. High-voltage models designed for utility and industrial work can output 5,000 V or 10,000 V and often include motorized test sequences.

Some advanced instruments combine insulation testing with multimeter functions, clamp measurement, or step-voltage testing. Choosing the right type depends on the voltage range you need, the environment, and whether you require documentation and trending features.

What Safety Precautions Should You Take?

Insulation testing involves high voltages and stored capacitive energy, so safety must come first. Always de-energize and lock out the equipment before testing. Discharge the insulation after each test, because cables and windings can hold a dangerous charge even after the megohmmeter stops applying voltage.

Use properly rated leads and keep hands clear of test points. Never test energized circuits unless you are using equipment specifically designed and rated for that purpose. Finally, follow your site's safety procedures and wear appropriate personal protective equipment.

How Often Should You Perform Megohmmeter Tests?

Testing frequency depends on the criticality of the equipment and its operating conditions. Critical motors and generators may be tested quarterly or even monthly, while less critical assets might be tested annually. New installations, rewound motors, and equipment that has been stored or exposed to moisture should always be tested before being placed into service.

After any event such as a flood, overload, or fault trip, an insulation test is strongly recommended. Keeping a historical record of readings lets you spot trends and make informed maintenance decisions instead of reacting to failures.

Can a Megohmmeter Detect All Electrical Problems?

No single instrument can find every fault. A megohmmeter is excellent at detecting insulation degradation, moisture ingress, contamination, and ground faults. However, it will not measure contact resistance, inductance, capacitance, or power quality, and it may not reveal intermittent faults that only appear under load or vibration.

For a complete picture, combine insulation resistance testing with other tools such as multimeters, clamp meters, power quality analyzers, and thermal cameras. Used together, these instruments give maintenance teams a reliable, layered view of electrical system health.
