Introduction to Low Flow Rate Measurement
In many industrial processes, accurately measuring low flow rates is critical for quality control, safety, and efficiency. Low flow applications often involve viscous fluids, chemicals, or gases where traditional flowmeters may struggle. This guide explores the best flowmeter technologies for low flow rates, offering practical tips for selection and installation.
Challenges in Low Flow Measurement
Low flow rates (typically below 1 L/min for liquids or 10 L/min for gases) present unique challenges:
- Low Reynolds numbers: Laminar flow dominates, making many conventional meters inaccurate.
- Viscosity effects: Fluid viscosity can significantly impact measurement accuracy.
- Pressure drop: Some meters introduce excessive pressure loss, affecting system performance.
- Small pipe diameters: Installation constraints and sensor sizing become critical.

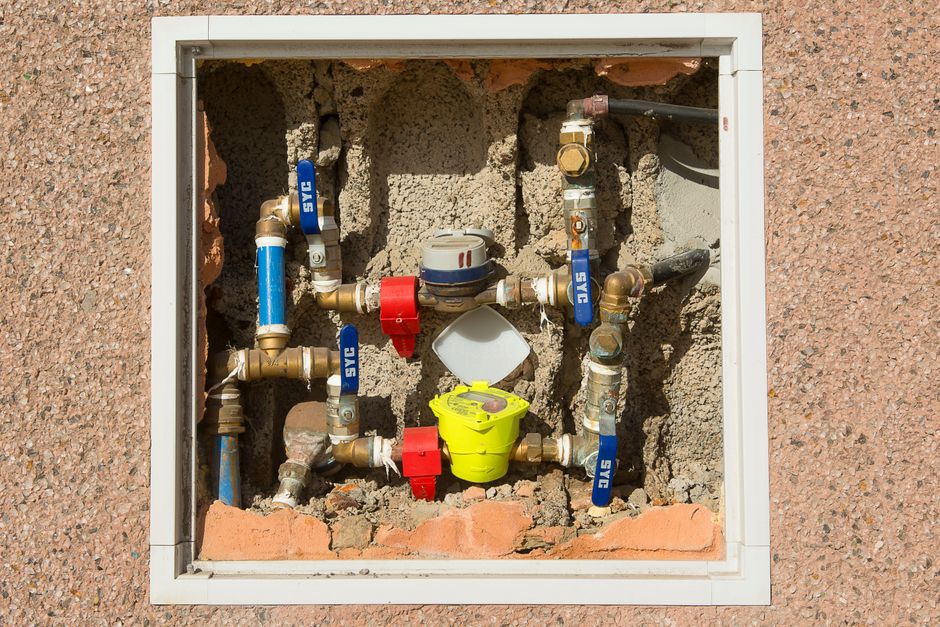

Top Flowmeter Technologies for Low Flow
1. Coriolis Mass Flowmeters
Coriolis meters directly measure mass flow with high accuracy (0.1% of rate) even at very low flows. They are unaffected by changes in fluid density, viscosity, or temperature. Ideal for critical applications like dosing and batching.
2. Thermal Mass Flowmeters
Thermal meters measure the heat dissipation from a heated sensor. They are excellent for low-flow gas applications (down to 0.01 L/min) and offer fast response. However, they are sensitive to gas composition and require calibration for specific gases.
3. Positive Displacement Meters
These meters physically displace a fixed volume of fluid. They are highly accurate for low-flow liquids (0.01-10 L/min) and handle high viscosity well. Common types include gear, piston, and diaphragm meters.
4. Ultrasonic Flowmeters
Clamp-on ultrasonic meters are non-invasive and can measure low flows in small pipes. Transit-time meters work for clean liquids, while Doppler meters handle slurries. Accuracy is typically 1-2% of rate.
5. Variable Area (Rotameters)
Simple and cost-effective, rotameters use a float in a tapered tube. They are suitable for low-flow gas and liquid applications but require manual reading and are less accurate (2-5% of full scale).
Selection Criteria for Low Flow Applications
When choosing a flowmeter for low flow, consider these factors:
- Flow range: Ensure the meter's turndown ratio covers your minimum and maximum flows.
- Fluid properties: Viscosity, density, and chemical compatibility matter.
- Accuracy requirements: Higher accuracy often comes with higher cost.
- Pressure and temperature: Operating conditions must be within meter specifications.
- Installation constraints: Straight pipe runs, orientation, and pipe diameter affect performance.
Installation Best Practices
Proper installation is key to achieving accurate low flow measurement:
- Ensure sufficient straight pipe upstream and downstream (typically 10x and 5x pipe diameter).
- Avoid air bubbles in liquid lines; use deaerators if necessary.
- For viscous fluids, maintain consistent temperature to prevent viscosity changes.
- Use proper sealing and fittings to avoid leaks that can distort flow.
- Calibrate the meter under actual operating conditions.
Practical Tips for Low Flow Measurement
- Consider using a flow conditioner to stabilize flow profiles.
- For pulsating flows, use a damper or select a meter with fast response.
- Regularly clean sensors to prevent fouling, which affects accuracy.
- Use signal filtering to reduce noise from turbulent eddies.
- When in doubt, consult with flowmeter experts or conduct a pilot test.
Comparison Table of Low Flow Flowmeters
| Type | Accuracy | Min Flow (L/min) | Best For | Cost |
|---|---|---|---|---|
| Coriolis | ±0.1% | 0.001 | High-precision liquids & gases | High |
| Thermal | ±1% | 0.01 | Low-flow gases | Medium |
| Positive Displacement | ±0.5% | 0.01 | Viscous liquids | Medium |
| Ultrasonic | ±1-2% | 0.1 | Clean liquids, non-invasive | Medium-High |
| Rotameter | ±2-5% | 0.1 | Simple, low-cost applications | Low |
Conclusion
Selecting the right flowmeter for low flow applications requires understanding the fluid properties, process conditions, and accuracy needs. Coriolis and positive displacement meters offer the highest accuracy for liquids, while thermal meters excel for gases. With proper installation and maintenance, these instruments can provide reliable measurement for even the most demanding low flow processes. For expert advice tailored to your application, contact our team.
