True RMS Multimeter: What It Is & Why It Matters

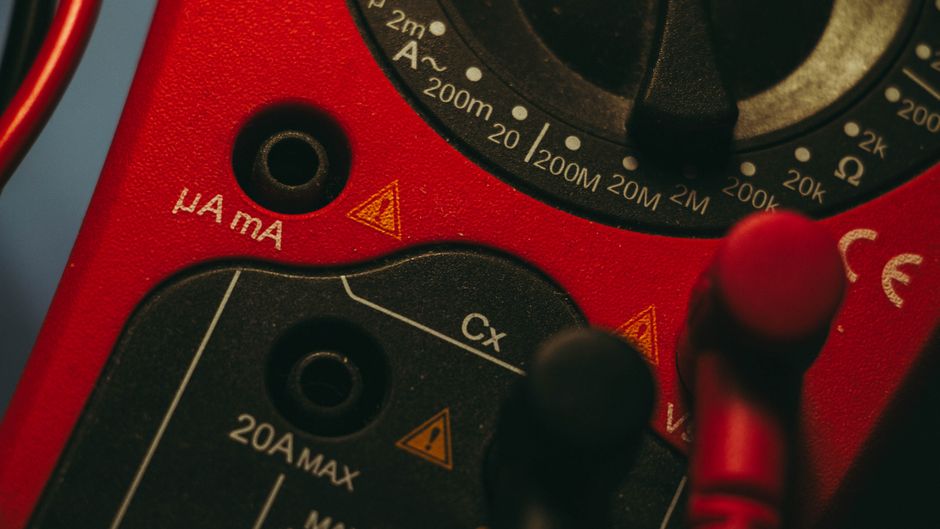

What Is True RMS in a Multimeter?

True RMS stands for "True Root Mean Square." In a multimeter, it refers to the instrument's ability to accurately measure the effective value of an alternating current (AC) or AC+DC signal, regardless of the waveform's shape. A True RMS multimeter uses a specialized converter to calculate the heating effect of the waveform, which is the true definition of RMS. This means it can correctly measure distorted, non-sinusoidal waveforms such as those produced by variable frequency drives (VFDs), switching power supplies, and electronic ballasts.

In contrast, a standard averaging multimeter assumes the waveform is a perfect sine wave. It measures the average rectified value and then multiplies by a correction factor (1.11) to estimate the RMS value. This works fine for clean sine waves, but it produces significant errors when the waveform is distorted. True RMS meters are essential for modern electrical work where non-linear loads are common.

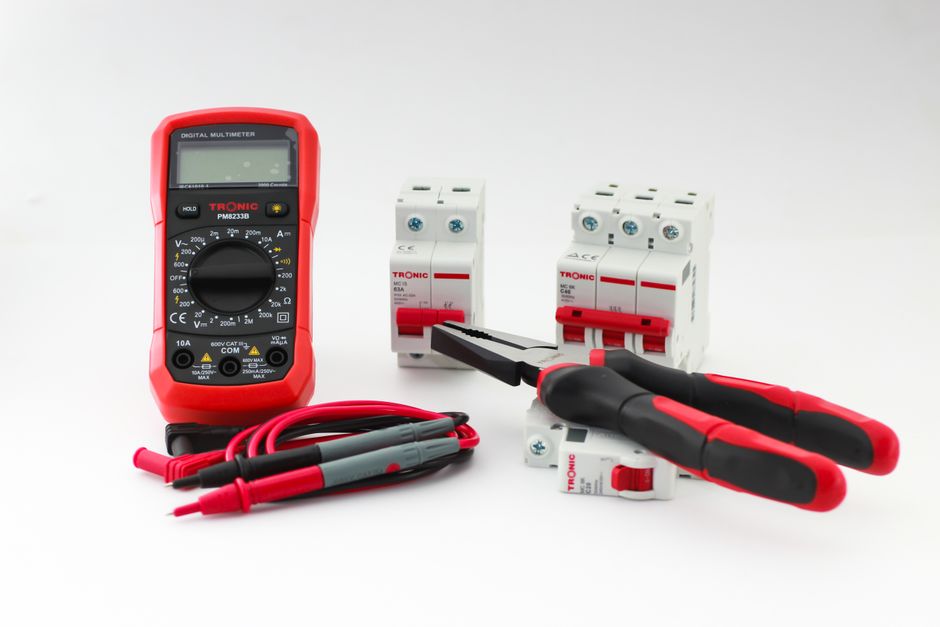

Why Is True RMS Important?

True RMS matters because inaccurate measurements can lead to serious consequences. If you use an averaging meter on a distorted waveform, you might read a value that is 10% to 50% lower than the actual RMS value. This can cause you to underestimate current, leading to overloaded circuits, overheating, and potential fire hazards. It can also cause you to misdiagnose equipment problems or fail to verify that a circuit is within safe operating limits.

In industrial and commercial settings, non-linear loads are everywhere. Computers, LED lighting, adjustable speed drives, and office equipment all draw current in non-sinusoidal pulses. A True RMS meter gives you the real heating effect of that current, which is what actually matters for safety and performance. For anyone working with modern electrical systems, True RMS is not a luxury—it is a necessity.

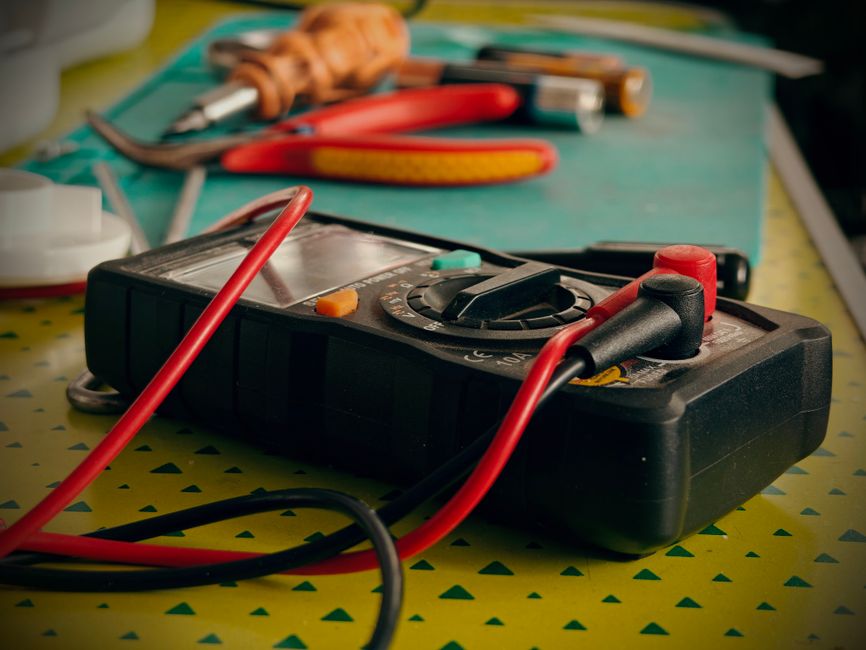

How Does a True RMS Multimeter Work?

A True RMS multimeter typically uses a thermal or digital sampling method to compute the RMS value. Thermal types use a heating element and a temperature sensor to measure the heat generated by the current, which is directly proportional to the RMS value. Digital types use an analog-to-digital converter to sample the waveform at high speed, then a microprocessor squares each sample, averages the squares, and takes the square root. This mathematical process is the definition of RMS.

The digital approach is more common in modern handheld multimeters because it is faster, more robust, and less expensive. Some high-end meters also offer True RMS AC+DC coupling, which measures the combined effect of AC and DC components. This is important when measuring signals with a DC offset, such as in some motor drives or power supplies.

When Do You Need a True RMS Multimeter?

You need a True RMS multimeter whenever you are measuring AC signals that are not pure sine waves. Common scenarios include troubleshooting VFDs, measuring the output of inverters, testing UPS systems, and working on any circuit with switching power supplies or electronic loads. If you are an electrician, HVAC technician, or electronics engineer, a True RMS meter should be your standard tool.

Even in residential settings, True RMS can be useful. Modern homes have many non-linear loads, such as LED bulbs, dimmers, and computers. While a basic averaging meter might suffice for simple checks, a True RMS meter gives you confidence that your readings are accurate. For hobbyists and DIYers, a True RMS meter is a worthwhile investment if you work with any kind of electronics.

What Is the Difference Between True RMS and Averaging Multimeters?

The key difference lies in how they respond to waveform shape. An averaging multimeter is calibrated to give the correct RMS value only for a pure sine wave. It measures the average of the absolute value of the waveform and scales it by 1.11. If the waveform is a square wave, triangle wave, or a distorted sine wave, the reading will be wrong. A True RMS multimeter, on the other hand, measures the actual RMS value directly, so it is accurate for any waveform within its bandwidth and crest factor limits.

For example, consider a typical dimmer switch that chops the sine wave. An averaging meter might read 80 V when the true RMS is 100 V. That 20% error can be dangerous. True RMS meters eliminate this error, providing readings that reflect the true heating effect. This is why standards organizations and safety codes often require True RMS measurements for certain applications.

What Is Crest Factor and Why Does It Matter?

Crest factor is the ratio of a waveform's peak value to its RMS value. For a pure sine wave, the crest factor is 1.414. Non-sinusoidal waveforms can have much higher crest factors. A True RMS multimeter must be able to handle the crest factor of the signal without clipping or distorting the measurement. If the crest factor exceeds the meter's specification, the reading may be inaccurate.

Most True RMS multimeters specify a maximum crest factor, often around 3:1 or 5:1 at full scale. When measuring signals with high crest factors, such as pulse trains or SCR outputs, you need a meter with a higher crest factor rating. Some advanced meters display the crest factor or allow you to measure it. Understanding crest factor helps you choose the right meter and interpret your readings correctly.

How Can You Tell If a Multimeter Is True RMS?

Look for the words "True RMS" or "TRMS" on the meter's front panel or in its specifications. Many manufacturers clearly label True RMS models. If the meter does not say True RMS, it is almost certainly an averaging meter. You can also check the accuracy specifications: True RMS meters often have an additional accuracy specification for non-sinusoidal waveforms, or they specify a crest factor range.

Another way is to test the meter with a known non-sinusoidal waveform. For instance, use a function generator to produce a square wave and compare the meter's reading to the expected RMS value. An averaging meter will be off, while a True RMS meter will be accurate. However, this requires some test equipment and knowledge. The simplest approach is to buy from a reputable brand and check the product description carefully.

Are True RMS Multimeters More Expensive?

Yes, True RMS multimeters generally cost more than basic averaging models. The additional circuitry and processing power required for true RMS conversion add to the manufacturing cost. However, prices have come down significantly in recent years. You can find decent True RMS multimeters for under $100, and professional-grade models range from $200 to $500 or more.

Considering the potential cost of inaccurate measurements—equipment damage, safety hazards, and wasted troubleshooting time—the extra investment is usually justified. For professionals, a True RMS meter is a standard tool of the trade. For occasional users, a mid-range True RMS meter offers a good balance of price and performance. Many manufacturers now offer True RMS in their entry-level lines, making it more accessible than ever.

What Are the Limitations of True RMS Multimeters?

True RMS multimeters are not perfect. They have bandwidth limitations: most handheld meters are accurate only up to a few kilohertz. Above that, readings may roll off. They also have crest factor limits, as mentioned earlier. Additionally, True RMS meters may be slower to respond than averaging meters, especially when auto-ranging. Some meters may have difficulty measuring very low currents or voltages accurately.

Another limitation is that True RMS does not mean "true power." It measures RMS voltage or current, but to calculate power in AC circuits, you need to consider phase angle and harmonics. For power measurements, you need a wattmeter or a power quality analyzer. True RMS is a crucial specification, but it is not the only one. Understanding its limits helps you use the meter correctly and avoid misapplication.

Frequently Asked Questions

Can I use a True RMS multimeter for DC measurements?

Yes, True RMS multimeters can measure DC voltage and current just like any other multimeter. The True RMS feature applies only to AC measurements. Some models offer AC+DC coupling, which combines both for a total RMS reading.

Is True RMS necessary for basic electrical work?

For simple residential wiring with mostly resistive loads, an averaging meter may be sufficient. However, given the prevalence of electronic loads, True RMS is recommended for anyone who wants accurate readings and safety.

How do I choose a True RMS multimeter?

Consider your application, safety rating (CAT III or CAT IV), accuracy, bandwidth, crest factor, and budget. Brands like Fluke, Keysight, and Brymen are known for quality. Read reviews and check specifications carefully.

Does True RMS affect resistance or continuity measurements?

No, True RMS is only relevant for AC measurements. Resistance, continuity, diode test, and capacitance measurements are unaffected by the True RMS feature.

Can a True RMS multimeter measure harmonics?

Not directly. True RMS gives the total RMS value, including harmonics, but it does not break down individual harmonic components. For harmonic analysis, you need a power quality analyzer or a spectrum analyzer.

What is the difference between True RMS and RMS?

RMS is a mathematical concept: the square root of the mean of the squares. True RMS means the meter calculates this value directly, rather than estimating it from an average. So "True RMS" is a more accurate implementation of RMS.

Do I need a True RMS multimeter for HVAC work?

Yes, HVAC systems often have variable frequency drives, ECM motors, and other non-linear loads. True RMS is essential for accurate current and voltage measurements in these systems.

How often should I calibrate a True RMS multimeter?

Most manufacturers recommend annual calibration for professional use. If the meter is used in critical applications or harsh environments, more frequent calibration may be needed. Always follow the manufacturer's guidelines.
